NUUO Crystal™ Family

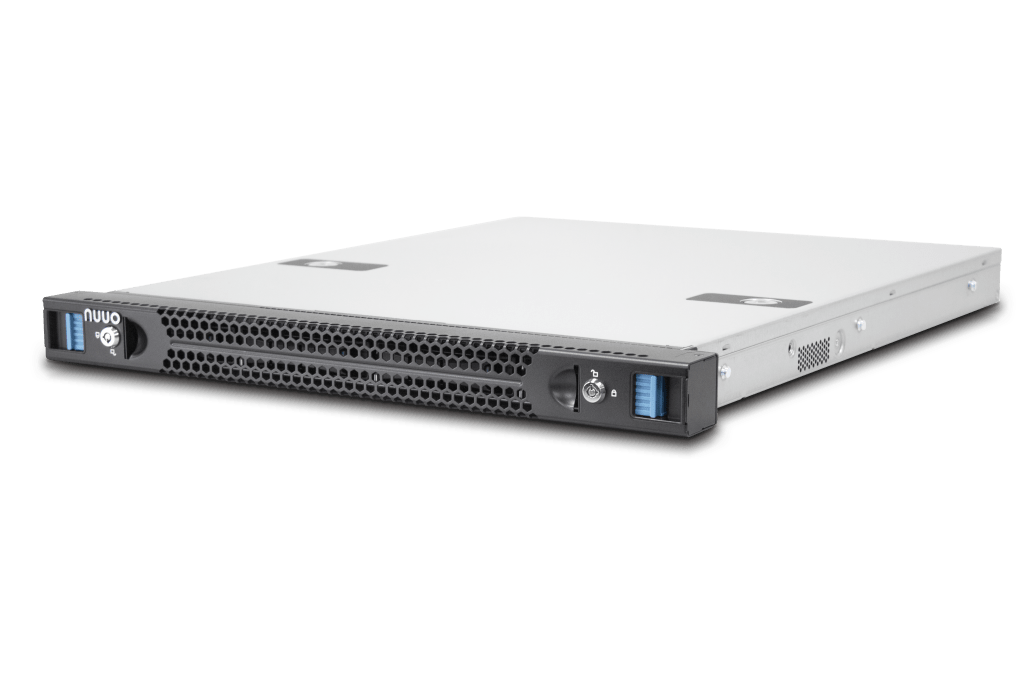

R1-0400CT
Key Features
- System Navigator – Provides centralized management for multi-sites, allowing for the management of unlimited cameras and third-party systems on the unified NuClient platform.
- HTTP notification – Enables seamless integration with various devices and systems through the JSON format
- High throughput: supporting up to 64 channels, 128Mbps
- Recording failover (Only available with Ultimate licenses)
- Supports over 4,000 camera models from over 130 brands, and RTSP video stream
- Linux based system
Key Specifications
| Type | Rack mount 1U server | |
| CPU | Intel® Celeron | |
| RAM | 4 GB | |
| Number of Drives (Hot Swapping Supported) | 4 x SATA III | |
| Max Storage Per Drive | 20 TB | |
| Max Internal Total Storage | 80 TB | |
| RAID Level | RAID 0, 1, 5, 6, 10 (Support hot swap and hot spare) | |
| I/O Interface | 1 x USB 3.0 | |
| 2 x USB 2.0 | ||
| 1 x eSATA (for DAS); 2 x VGA, 1 x HDMI | ||
| LAN | 2 x RJ45 Gigabit Port | |
| LAN Transmission Speed | 10/100/1,000 Mbps | |
| Voltage | 100-240V | |
| Power Consumption | Typical loading: 50 W; Max: 250 W | |
| Device Dimension (H x W x D) | 43.5 x 438 x 560 mm (1.71″ x 17.24″ x 22.05″) | |
| Device Weight (Without HDD) | 6.0 kg (13.2 lbs) | |
| Temperature | Operating: 0 ~ 40 °C (32 ~ 122 °F) Non-Operating: -40 ~ 70 °C (-40 ~ 156 °F) | |
| Humidity | Operating: 5%-95% | |
| Certification | CE, FCC, BIS, RoHS | |
