NUUO Crystal™ Family

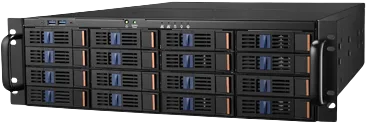

R3-1600CT-HR/ R3-1600IP

Key Features

  • System Navigator: centralized management for multi-sites; managing unlimited devices and events on unified NuClient
  • Diagnostic Service: retrieving important logs from the server and client for troubleshooting
  • Linux based system
  • Records up to 64 megapixel cameras per Recording Server
  • High throughput: supporting up to 256 channels, 250~1024Mbps
  • Recording failover (Only available with Ultimate licenses)
  • Metadata Server for 3rd party integration – POS and Access Control
  • Supports over 4000 camera models from over 80 brands, and RTSP video stream

Key Specifications

TypeRack-mount 3U with Redundant Power Supply
CPUIntel® Xeon E3-1275 v5
RAMDDR4 8G X 2 (Dual Channel)
Number of Drives
(Hot Swapping Supported)
2 X SATA Port (Backplane)
Max Storage Per Drive20 TB
Max Internal Total Storage320 TB
RAID LevelRAID 0, 1, 5, 6, 10 (Hardware RAID Controller)
I/O Interface4 X USB3.0;
2 X USB2.0;
1 X VGA; 1 X DVI
LAN2 x Gigabit Port, RJ45
 (10 Gigabyte Network Card is optional)
LAN Transmission Speed10/100/1000 Mbps
Power ConsumptionRedundant Power Supply (Max: 550W)
Device Dimension (H X W X D)435 x 132 x 620 mm (17.13″ x 5.2″ x 24.41″)
Device Weight (Without HDD)19 kg (41.9 lbs)
TemperatureOperating: 0 ~ 40 °C (32 ~ 122 °F)
Non-Operating: -40 ~ 70 °C (-40 ~ 156 °F)
HumidityOperating: 5%-95%
CertificationCE, FCC, BIS, RoHS
