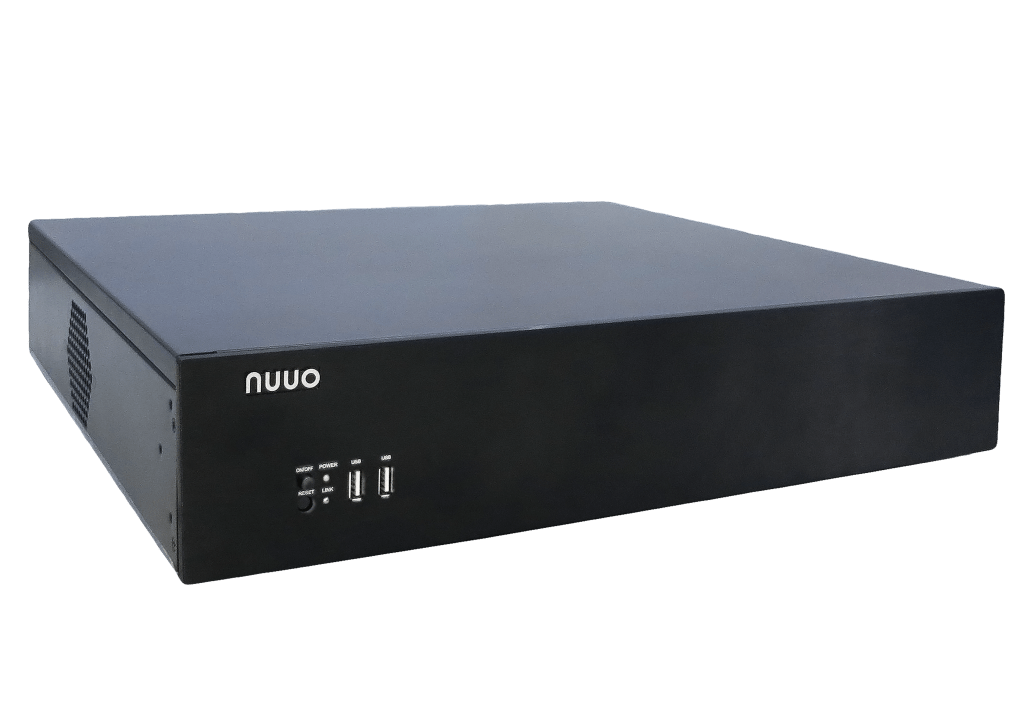

Stand Alone NVRSolo

Key Features

  • One-click setup for over 100 brands of IP cameras
  • ezNUUO – free from router settings for web/mobile viewing
  • Point of Sale (POS)
  • Alarm source of NUUO Central Management System
  • RAID 0,1,5,10 support
  • Supports embedded motion detection (local setup)
  • Supports multi-stream camera setting
  • Dual monitor
  • 2nd stream record – Dual record
  • Supports two-way camera audio
  • Supports HDD SMART self-test

Key Specifications

ModelNP-8160
Maximum Numbers of Licenses 32
Based License16
Video OutputHDMI, VGA
Output Resolution1920 x 1080, 1440 x 900, 1280 x 1024, 1366 x 768, 1024 x 768, 800 x 600
Decoding Capacity (H.265)480fps @ 1080p or 120fps @ 4K
Decoding Capacity (H.264)480fps @ 1080p or 120fps @ 4K
Throughput200 Mbps
Number of Drives8 x 3.5” SATA II
External Storage1 x eSATA
Max Storage Per Drive16 TB
RAID LevelRAID 0,1,5,10
RAMDDR3 2GB
I/O Interface3 x USB2.0, 1 x USB3.0
LAN2 x Gigabit Port, RJ45
LAN Transmission Speed10/100/1000 Mbps
VoltageAC100～240V, 47Hz～63Hz(Power plug can be selected)
Power Consumption35W (Without HDD)/ Max 250W
Device Dimension (HxWxD)440(H)*432(W)*90(H) mm
Device Weight (Without Drive)7 Kg
Temperature (Operating with HDD)-10°C ~ 55°C
Humidity (Operating)10﹪-90﹪
