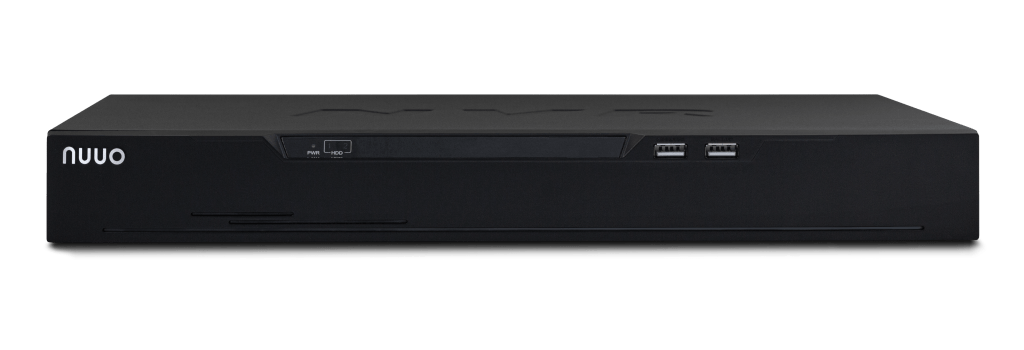

NVRSolo 2Bay
Key Features
- One-click setup for over 100 brands of IP cameras
- ezNUUO – free from router settings for web/mobile viewing
- Point of Sale (POS)
- Alarm source of NUUO Central Management System
- RAID 0,1 support
- Supports embedded motion detection (local setup)
- Supports multi-stream camera settings
- Dual monitor
- 2nd stream record – Dual record
- Supports two-way camera audio
- Supports HDD SMART self-test
Key Specifications
| Model | NP-2040S | NP-2080S | NP-2160S |
| Maximum Numbers of Licenses | 16 | ||
| Based License | 4 | 8 | 16 |
| Video Output | HDMI or VGA | ||
| Output Resolution | HDMI Output 3840×2160,1920×1080, 1440×900, 1280×1024 VGA Output 1920×1080, 1440×900, 1280×1024 | ||
| Decoding Capacity | 1ch 8MP, 4ch 1080P, 8ch D1, 16ch D1@30fps | ||
| Throughput | 200Mbps | ||
| Number of Drives | 2 SATA Ports | ||
| Max Storage Per Drive | 16TB | ||
| Max Storage Per volume | 16TB | ||
| RAID Level | RAID 0,1 | ||
| RAM | DDR3 2GB | ||
| I/O Interface | Input 8ch + Output 2ch | ||
| USB | 2XX0S 2 ports (USB 2.0 x 2) | ||
| LAN | 2XX0S 2 RJ-45 port (10/100/1000 Mbps) | ||
| Audio | 1 in / 1 out | ||
| Voltage | AC100 ~ 240V | ||
| Power Consumption | MAX Power 36W | ||
| Device Dimension (HxWxD) | 372 × 310.5 × 46.5 mm (16.65 × 12.2 × 2.2 inch) | ||
| Device Weight (Without Drive) | 1.93 kg (6.05 lb) | ||
| Temperature (Operating with HDD) | -10 °C ~ 50 °C (14 °F ~ 122 °F) | ||
| Humidity (Operating) | Less than 90% RH | ||
