DM-7315

Highlights

  • 5MP @ 30fps Resolution
  • H.265 Bandwidth & Storage Optimization
  • H.265 / H.264 / MJPEG Video Streams
  • TAA & NDAA Compliant
  • 30M IR Illumination
  • Extreme Temperature to -40°F
  • True WDR
  • ONVIF Profile S Compliant
  • IP66 Weather Rating
  • IK10 Vandal Proof

Key Specifications

Camera

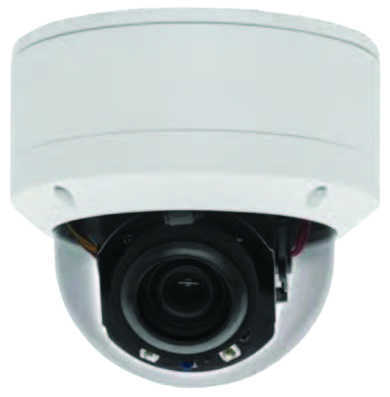

Model DM-7315 5MP Motorized Lens IR Dome Camera
Image Sensor 1/2.8” Progressive Scan CMOS STARVIS Sensor
Lens 2.8 ~ 12mm Motorized Lens
Horizontal View Angle106.3º
Minimum Illumination0.05 Lux @ F1.2, (Color)
0 Lux (IR LED On)
IR Distance30M
Shutter Speed 1/25s – 1/100,000s
WDR True WDR (120 dB)
Noise Reduction 3D (DNR)
Day / Night Function Mechanical IR Cut Filter (Auto)
Video
Video Compression H.265+, H.265, H.264, & MJPEG
Image Resolution 5MP (2592 x 1944) @ 30fps
Streams First: (2592 x 1944) @ 30fps
Second: (640 x 360) @ 30fps
S/N Ratio 120dB
Image Settings D-WDR, BLC, 3DNR, Motion Detection, Image Flip,
Saturation, Brightness, Contrast, & Sharpness
Audio
Audio Interface Input / Output
Audio Compression G.711U & G.711A
Audio Streaming Two-Way (Full Duplex)
Network
User Web
Access		Up to 6 Clients
ProtocolsHTTP, TCP / IP, IPv4, UPNP, RTSP, RTMP, SMTP,
NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, & etc.
Network
Management		Anti-Flicker, Heartbeat, Mirror, Password Protection,
Privacy Mask, & Watermark
General
ONVIF Compliant 2.4 (Profile S)
PigtailConnections IEEE 802.3af (PoE)
Power Consumption 10W (Max)
Memory Micro SD Card (Max: 128 GB) (Not Included)
PortsRJ-45 For Ethernet 10 / 100 Base-T (With PoE),
2 Pin Terminal Blocks For DC Power, Terminal
Blocks For DI / DO Alarm Input / Output, &
Audio-In / Audio-Out
Power PortsPoE; DC12V @ Less Than 10W
Temperature -40° ~ 140° F
Humidity 95% (Non-Condensing)
Dimensions in Inches (H x W x D)4.8 x 3.43 x 4.65 in.
Weight in Ounces 37.04 oz.
Weather Proof IP66 Rated
Vandal Proof IK10
Certification CE / FCC
